CS 8200 3D Access

Extraoral Imaging

Access your future practice

Now easy, advanced CBCT imaging is within reach

Enter a world of crystal-clear 3D images with the CS 8200 3D Access-a CBCT system that’s state-of-the-art,  but intuitive and easy to use, taking your dental practice to the next level. Enjoy CBCT imaging that’s easier  than you think and built on an open platform so that you can activate your future practice here and now.








Having the CS 8200 3D Access in the practice means better case preparation and planning. It also lets us manage treatment time more efficiently, which in turn makes the practice more profitable.



-Dr. Benjamin Houbani




Benefits at a glance
  • Easy, advanced CBCT imaging now available to everyone
  • Versatile 4-in-1 solution ideal to expand treatment options
  • Easy to use with a modern, user-friendly interface
  • Built on an open platform for a seamless workflow
  • Exclusive CS UpStream premium support service

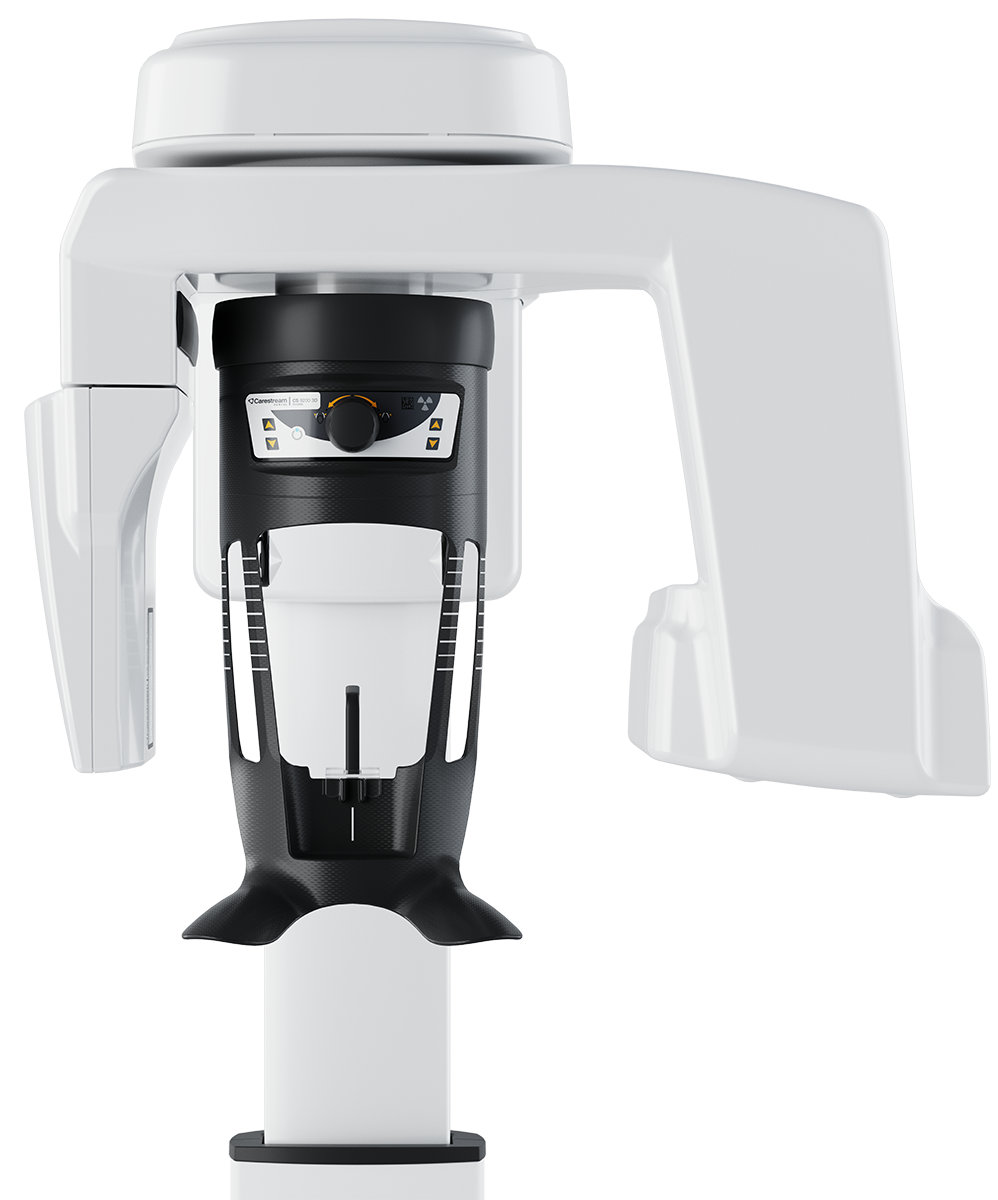

  • CS 8200 3D Access
  • CS 8200 3D Access
  • CS 8200 3D Access
  • CS 8200 3D Access
  • CS 8200 3D Access

Specifications

CS 8200 3D Access Specifications

Tube voltage

60 - 90 kV

Tube current

2 - 15 mA

Frequency

140 kHz

Input voltage (AC)

100 - 240 V 50/60 Hz

Minimum required space

Without ceph arm: 1200 (L) x 1400 (D) x 2400 (H) mm

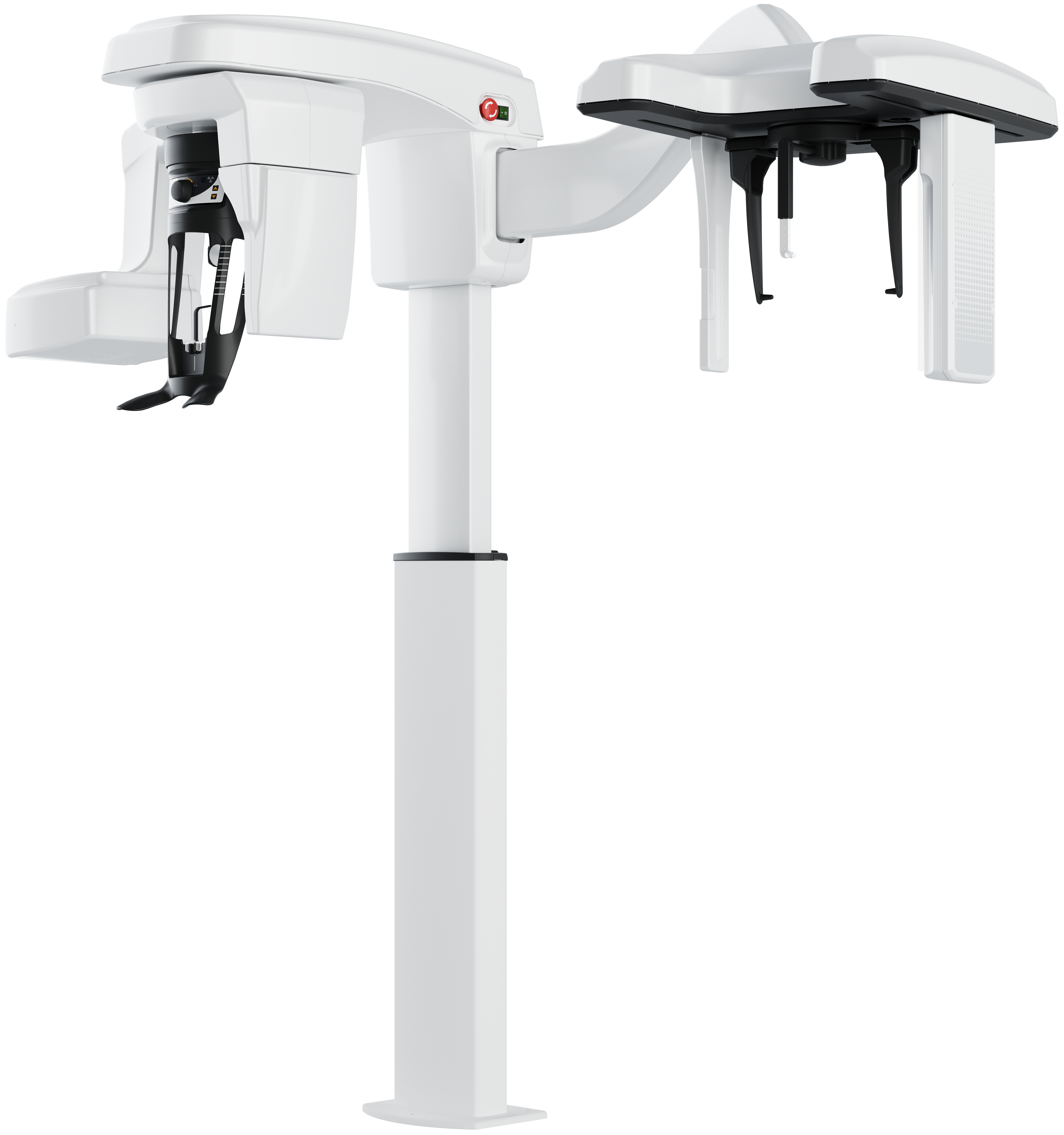

With ceph arm: 2000 (L) x 1400 (D) x 2400 (H) mm

Weight

Without ceph arm: 92 kg (202 lb.)

With ceph arm: 127 kg (280 lb.)


Panoramic Modality

Cephalometric Modality

3D Modality

Sensor technology

CMOS

CMOS

CMOS

Image field (2D)

Field of view (3D)

6.4 x 140 mm (Adult)  6.4 x 120 mm (Pediatric)

6.4 x 263.3 mm

CS 8200 3D Access: 4 x 4 - 5 x 5 - 8 x 5 - 8 x 91  10 x 52 - 10 x 102

CS 8200 3D Neo Edition: 4 x 4 - 5 x 5 - 5 x 8 - 8 x 5 - 8 x 91  10 x 52 - 10 x 102 - 12 x 52 - 12 x 102

Gray scale

16384 - 14 bits

16384 - 14 bits

16384 - 14 bits

Magnification

1.2

1.13

1.4

Radiological exam options

Full panoramic, segmented panoramic, maxillary sinus, LA TMJ x 2, LA TMJ x 4

Lateral, frontal AP or PA, oblique, submental-vertex, carpus (optional)

Full, upper or lower jaw - Full, upper or lower molar – Occlusion - Teeth

Exposure time

2 to 14 seconds

2.9 to 11 seconds

CS 8200 3D Access: 6s to 15s

CS 8200 3D Neo Edition: 3s to 20s

Videos & Images

4-IN-1 VERSATILITY
A 4-IN 1 SOLUTION THAT BLENDS PANORAMIC SOLUTION, CBCT IMAGING, 3D NODEL SCANNING AND OPTIONAL CEPHALOMETRIC IMAGING
75 MICRON PRECISION
75 MICRON CBCT RESOLUTION LET YOU VISUALIZE THE TINIEST CLINICAL DETAILS AND IS PERFECTLY SUITED FOR ENDODONTIC INDICATIONS
ARTIFACT-FREE IMAGES
Game-changing CS MAR* technology with unique live comparison automatically reduces metal artifacts. This helps you confirm diagnosis and reduces the risk of misinterpretation.
Selectable field of view
With up to six fields of view, including full arch scanning*, the CS 8200 3D Access covers virtually any need. You can obtain the ideal image for each individual exam, at the right dose.
INTUITIVE USER INTERFACE
The intuitive user interface is designed to facilitate exam setup. Settings are all on the same screen for a faster workflow.
LOW-DOSE IMAGING
The low-dose mode delivers high-quality 3D images at the same or lower dose as a standard panoramic exam for safer examinations.*
RAZOR-SHARP PANORAMIC IMAGES
Tomosharp algorithm delivers ultra-sharp panoramic images instantly, while the low-dose panoramic mode reduces the dose by up to 50%.
ULTRA-COMPACT AND SMART DESIGN
Compact enough to fit into tight spaces, the CS 8200 3D features the most intuitive workflow and laser-free face-to-face positioning.
OPEN SOLUTION
The CS 8200 3D Access is built on an open platform meaning you can easily connect CS Imaging software with leading intraoral scanners for fast, seamless workflow.
POWERED BY CS IMAGING VERSION 8
Our software connects all our imaging and CAD/CAM technologies into one single platform—the first step to an effective digital workflow.

Videos & Images

CS 8200 3D Access
Enter a world of crystal-clear 3D images with the CS 8200 3D Access, a dental Cone Beam CT system that’s state-of-the-art but intuitive and easy to use, taking your dental practice to the next level. Enjoy CBCT imaging that’s easier than you think and built on an open platform so that you can activate your future practice here and now.
CS 8200 3D Family
CS 8200 3D FAMILY
Using the CS 8200 3D Access Recorded Class
This recorded class is designed for clinical team members and demonstrates how to acquire images using the CS 8200 3D Access system
CS 8200 3D Access 5X5 CYST TEETH
CS 8200 3D Access 5X5 CYST TEETH

Case Images

CS 8200 3D Access 5X5 CYST TEETH


Canaux Mandible


10x10 impacted third molar


10x5 implant planning


CS 8200 3D ACCESS PANORAMIC IMAGE
